How Do Bullet Hinges Work?

Table of Contents


The world of hinges may seem straightforward at first glance – after all, how complex can a device designed to swing doors and gates be? But delve deeper, and you’ll find a fascinating assortment of hinge designs, each with unique mechanisms and specialized applications. Among these, bullet hinges stand out due to their robustness and versatility. So, how exactly do bullet hinges work? Let’s unravel the mystery.

The Structure of a Bullet Hinge

To understand how a bullet hinge works, let’s first examine its design. A bullet hinge, also known as a weld-on lift-off hinge, consists of two parts: the bullet (also known as the female part), and the blade (or the male part).

The bullet part, usually a cylindrical barrel, houses the hinge pin and has a cap welded at one end. The blade part consists of a leaf or strap with a protruding pivot, designed to fit snugly into the bullet’s barrel.

When assembled, the blade’s pivot goes into the bullet’s barrel, with the hinge pin acting as the pivot point for the door or gate’s swinging motion. This simple yet effective design allows the door or gate to be easily lifted off for maintenance or replacement by merely sliding the blade out of the bullet.

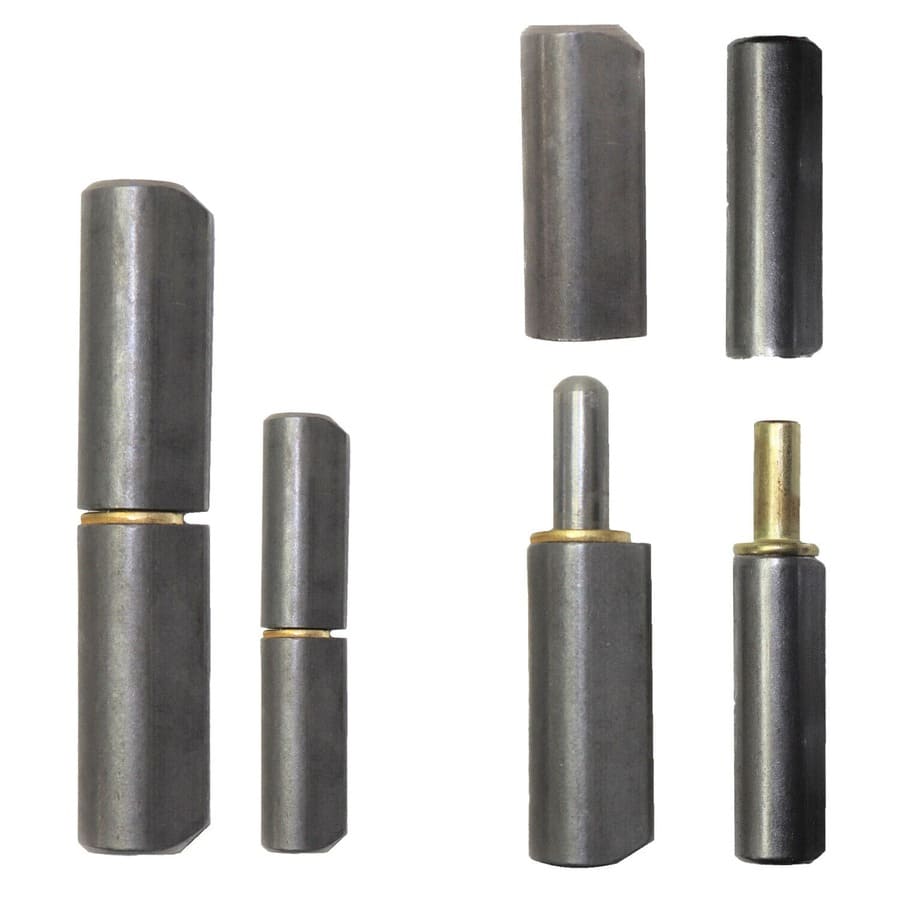

Picture of the structure of bullet hinges

The Lift-Off Advantage

One of the unique features of bullet hinges is their lift-off design. This means that the door or gate can be easily lifted off the frame by sliding the blade out of the bullet. This feature is especially useful for doors or gates that need to be frequently removed for cleaning, maintenance, or passage of large objects.


In conclusion, the working mechanism of bullet hinges can be attributed to their distinct design, featuring a bullet and a blade that come together to enable smooth and sturdy rotational movement. Coupled with their lift-off feature and weld-on installation, bullet hinges are an efficient and reliable choice for a variety of heavy-duty applications.
